Product Display

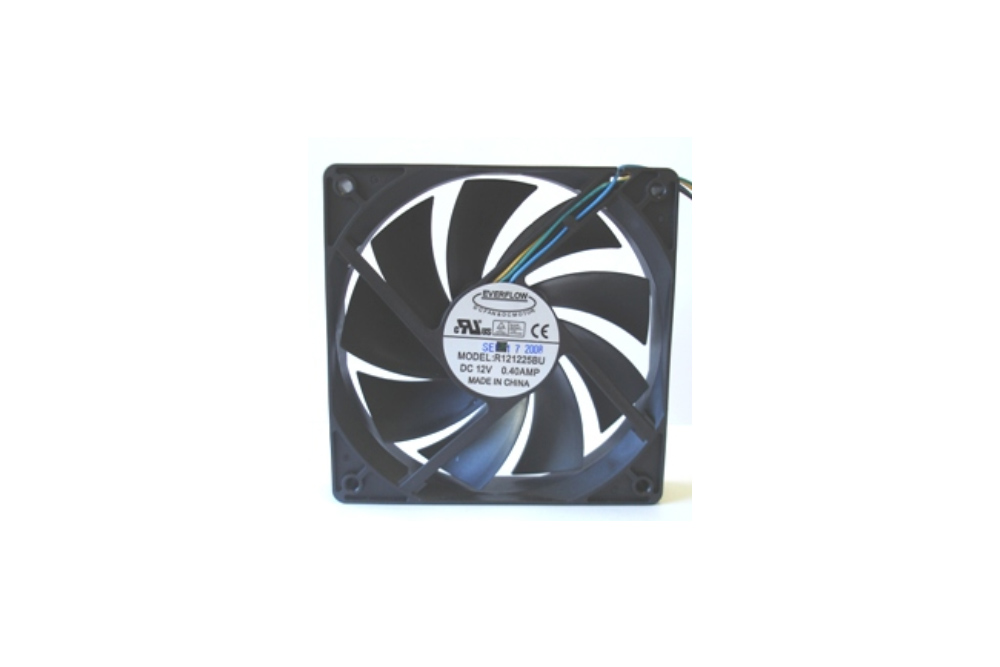

Model # R121225BUAF

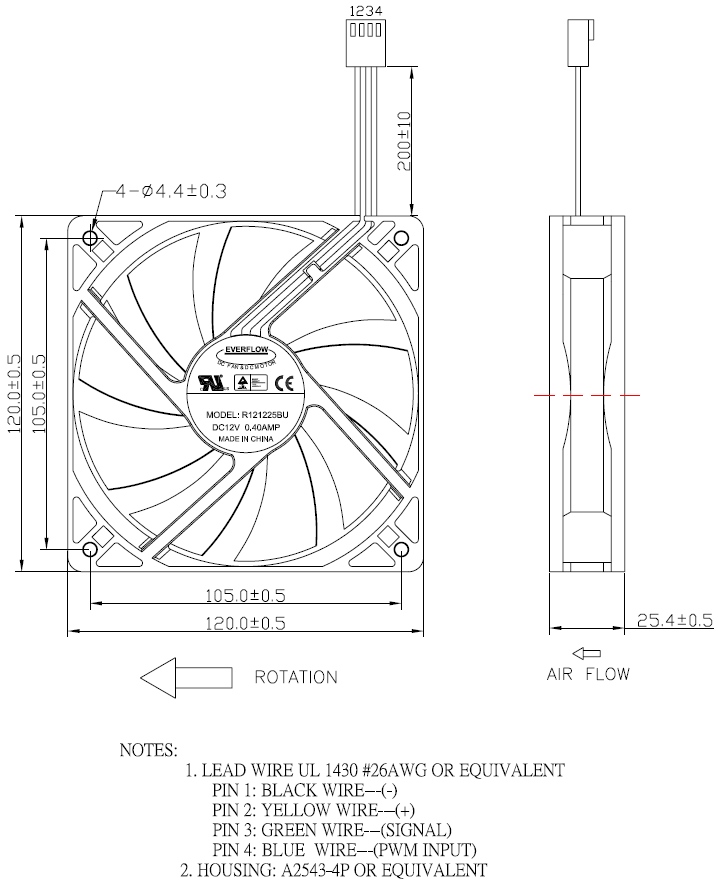

·         Fan size: 120x120x25mm
·         Fan voltage: 12V
·         Bearing: Dual Ball bearing
·         Fan speed: 700~ 2400 rpm
·         Noise Level: 19.5~39.5 dBA
·         Air Flow: 31.06~110.03 CFM
·         Power :  0.48~ 4.8 W
·         Static pressure : 0.31~3.26 mmH2O
·         Fan connector: 4-pin
·         Lead wire: UL1430 #26AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
