Product Display

Model # R121232BUAF

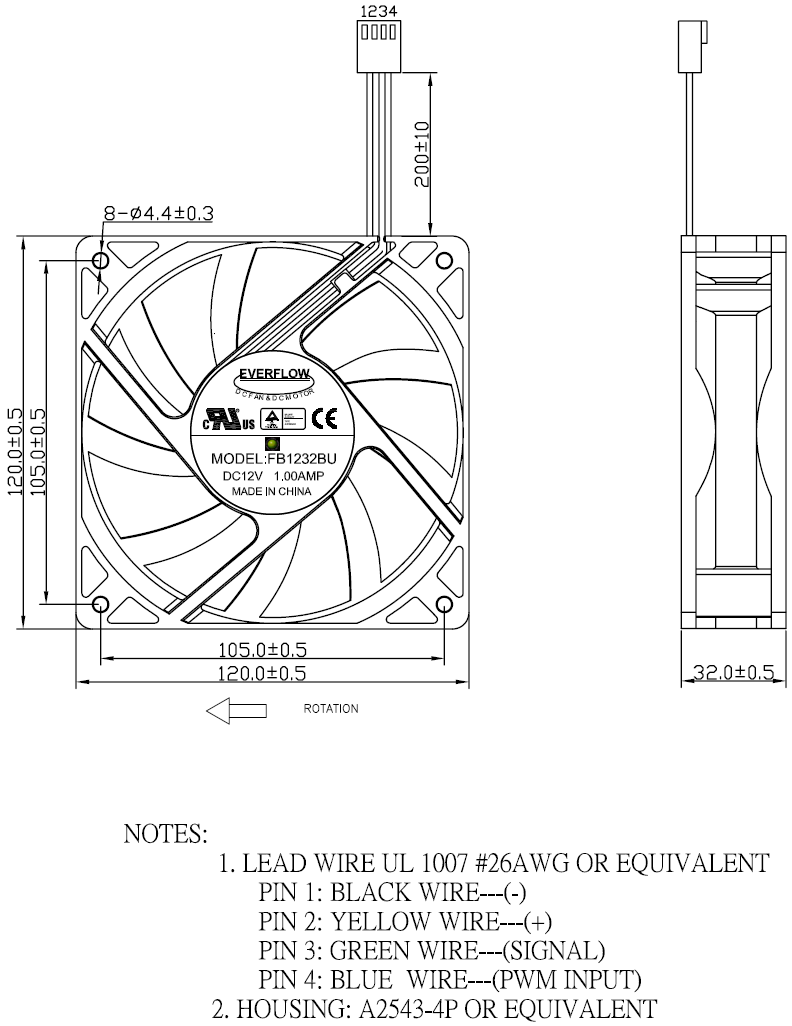

·         Fan size:120x120x32mm
·         Fan voltage: 12V  (Operating range:11.4~12.6 V DC)
·         Bearing:Dual Ball bearing
·         Fan speed: 900~3000 rpm
·         Noise Level: 20 ~47 dBA
·         Air Flow: 39.87~133.91 CFM
·         Power : 1.2 ~12 W
·         Static pressure : 0.55~6.03mmH2O
·         Fan connector: 4-pin
·         Lead wire: UL1007 #26AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
·         Housing : Molex 2510 or equivalent (Everflow 2543)
