Product Display

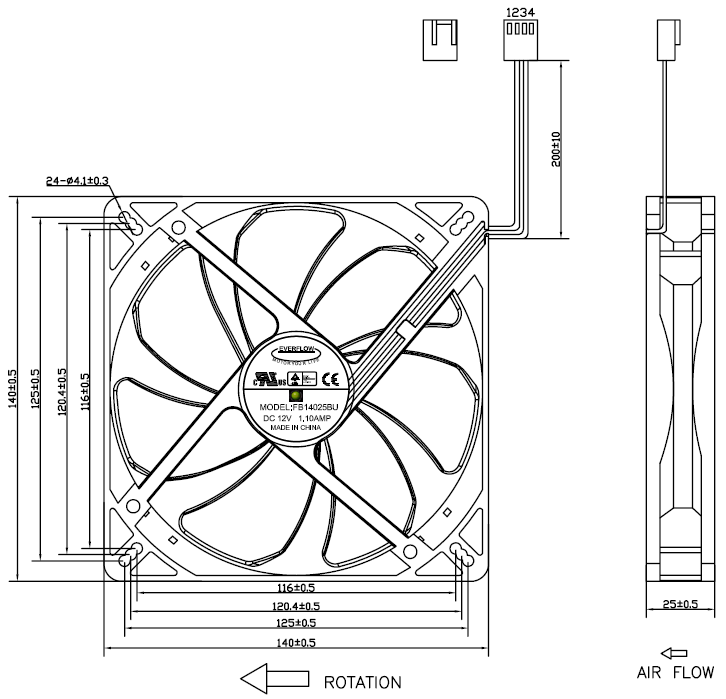

Model # F121425BUAF
·         Fan size: 140x140x25mm
·         Fan voltage: 12V
·         Bearing: Dual Ball bearing
·         Fan speed: 600 ~2600 rpm
·         Noise Level: 20 ~43 dBA
·         Air Flow: 29.68 ~126.02 CFM
·         Power :  1.2 ~13.2 W
·         Static pressure : 0.29 ~5.22 mmH2O
·         Fan connector: 4-pin
·         Lead wire: UL1007 #26AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
