Product Display

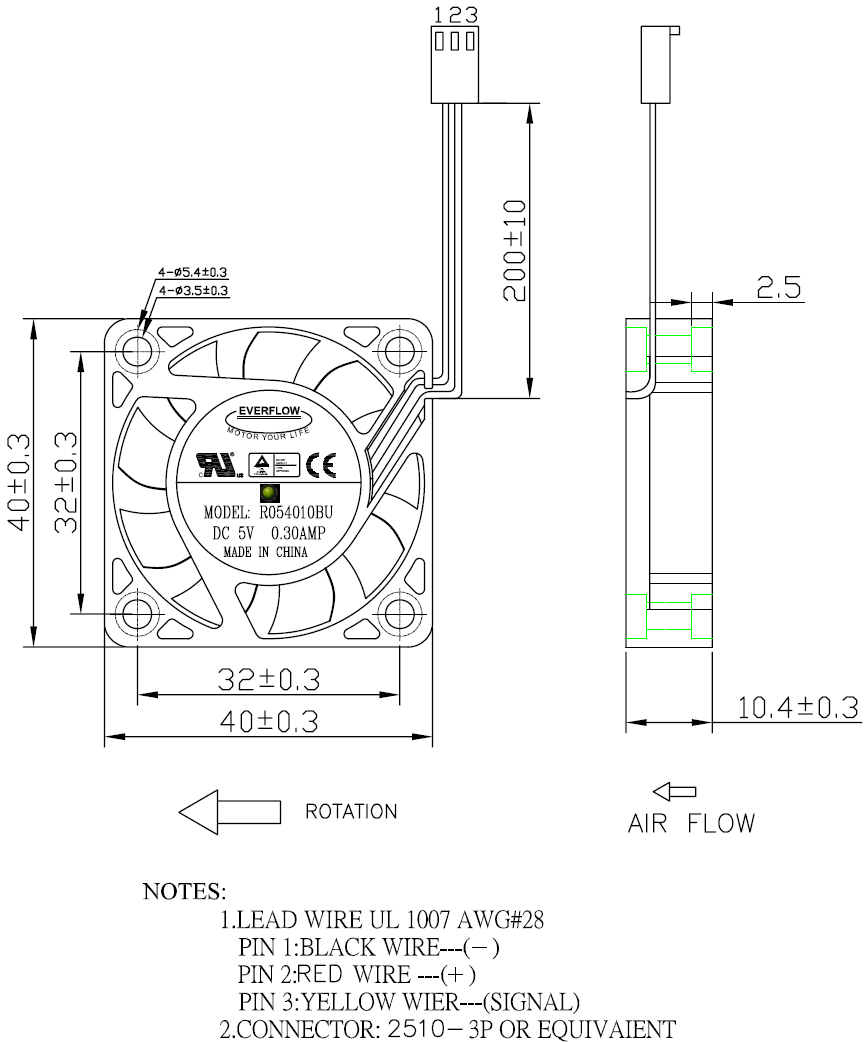

Model # R054010BU

·         Fan size:40x40x10mm
·         Fan voltage: 5V  (Operating Range:3.8~5.5 V DC)
·         Bearing: Dual Ball bearing
·         Fan speed: 8000 rpm
·         Noise Level: 34.7 dBA
·         Air Flow: 6.18 CFM
·         Power : 1.5 W (Max 2W)
·         Static pressure : 5.09 mmH2O
·         Operating Temp.:-10C~70C
·         Storage Temp: -20C~75C
·         Life Expectancy: 50,000 hours @40C, 65% humidity condition
·         Fan connector: 3-pin
·         Lead wire: UL1007 #28AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Red (PWR), Pin 3 Yellow (SGN)
·         Housing : Molex 2510-3p or equivalent
