Product Display

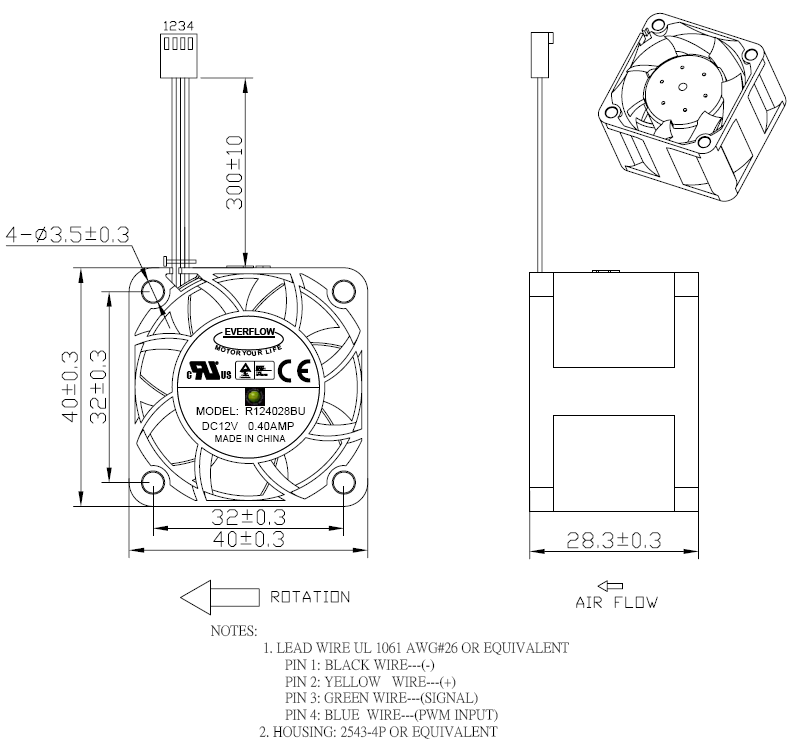

Model # R124028BUAF
·         Fan size: 40x40x28mm
·         Fan voltage: 12V
·         Bearing: Dual Ball bearing
·         Fan speed: 4500~ 18000 rpm
·         Noise Level: 28~59 dBA
·         Air Flow: 7.36~26.1 CFM
·         Power :  2.4~ 12 W
·         Static pressure : 3.65~36.98 mmH2O
·         Fan connector: 4-pin
·         Lead wire: UL1061 #26AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
