Product Display

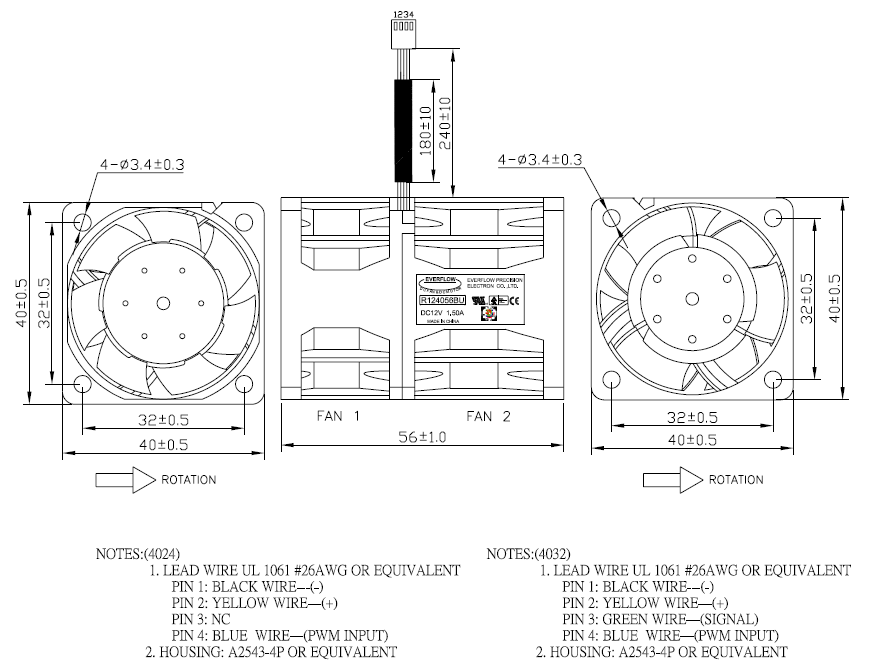

Model # R124056BUAF
·         Fan size: 40x40x56mm
·         Fan voltage: 12V
·         Bearing: Dual Ball bearing
·         Fan speed: 4800~ 15000 rpm (Fan 1); 2600~12000 rpm (Fan 2)
·         Noise Level: 36~57.7 dBA
·         Air Flow: 8.05~25.17 CFM (Fan 1); 4.36~20.13 CFM (Fan 2)
·         Power :  1.8~ 18 W
·         Static pressure : 2.75~26.82 mmH2O (Fan 1); 0.81 ~17.17 mmH2O (Fan 2)
·         Fan connector: 4-pin
·         Lead wire: UL1061 #26AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
