Product Display

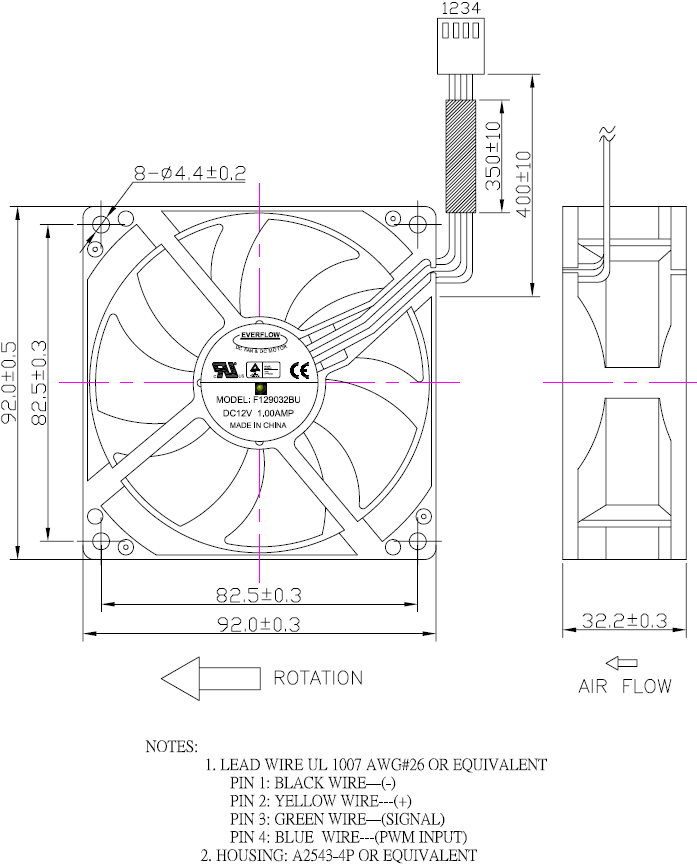

Model # R129032BUAF

·         Fan size: 92x92x32mm
·         Fan voltage: 12V
·         Bearing: Dual Ball bearing
·         Fan speed: 700~ 3600 rpm
·         Noise Level: 19~41.5 dBA
·         Air Flow: 16.77~86.26 CFM
·         Power :  1.2~ 12 W
·         Static pressure : 0.21~5.67 mmH2O
·         Fan connector: 4-pin
·         Lead wire: UL1007 #26AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
