Product Display

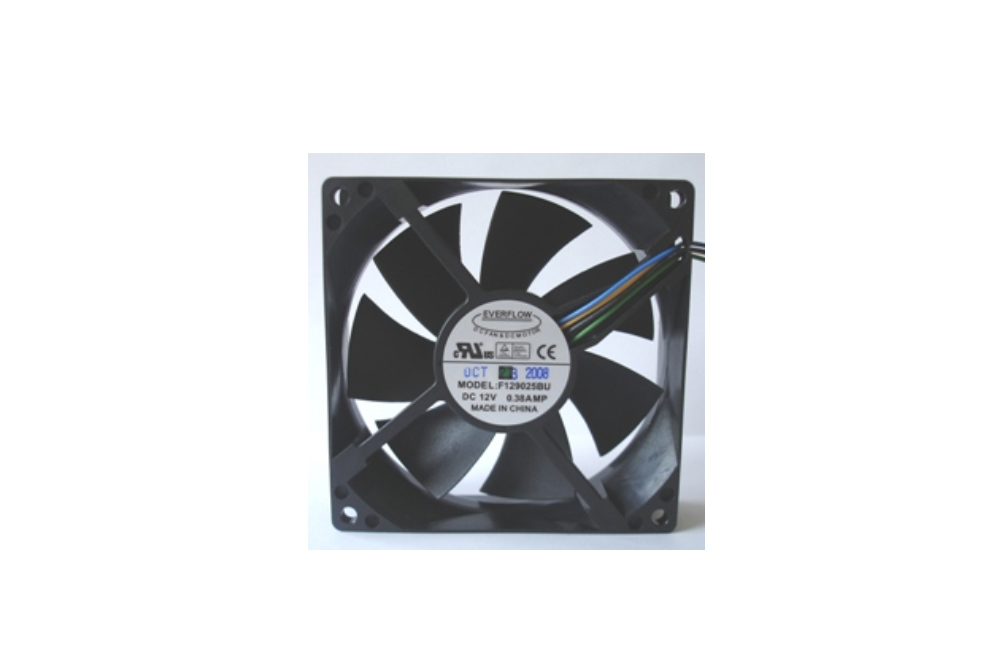

Model # R129025BUAF

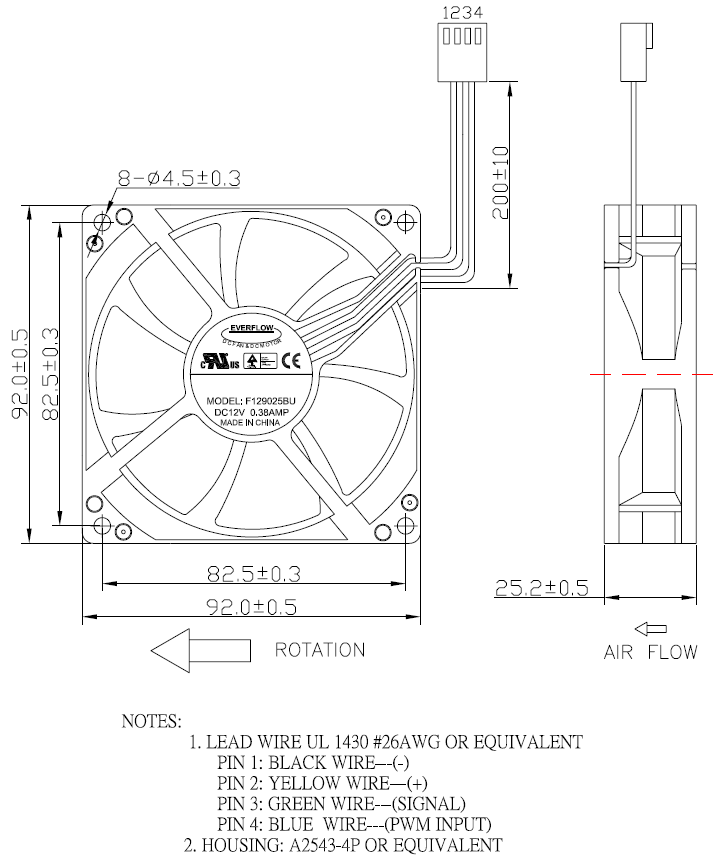

·         Fan size: 92x92x25mm
·         Fan voltage: 12V
·         Bearing: Dual Ball bearing
·         Fan speed: 800~ 3450 rpm
·         Noise Level: 19~40.7 dBA
·         Air Flow: 15.74~67.9 CFM
·         Power :  0.36~ 4.56 W
·         Static pressure : 0.3~5.5 mmH2O
·         Fan connector: 4-pin
·         Lead wire: UL1430 #26AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
