Product Display

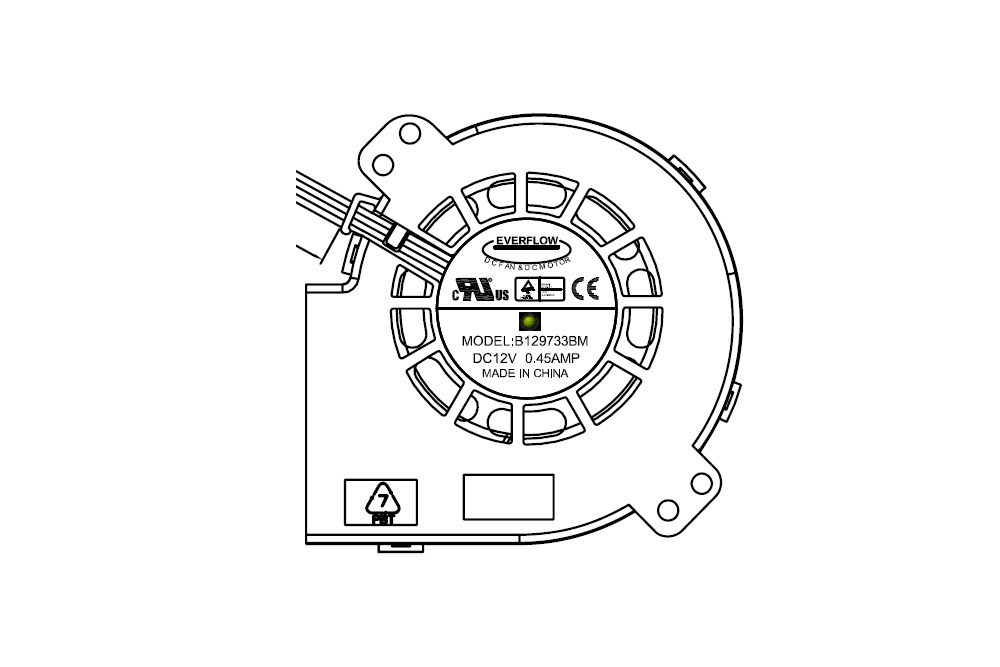

Model # B129733BMAF

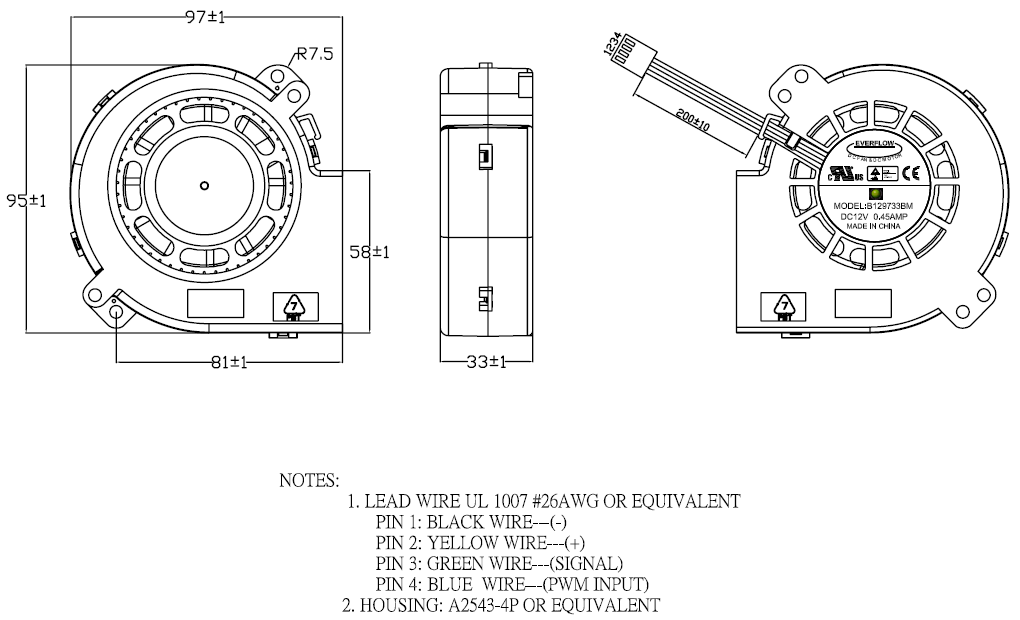

·         Fan size: 97x97x33mm
·         Fan voltage: 12V (Operating range: 11.4V ~12.6V)
·         Bearing: Dual Ball bearing
·         Fan speed: 1000~ 3200 rpm
·         Noise Level: 24~ 46 dBA
·         Air Flow: 9.07~29.01 CFM
·         Power :  1.44~ 5.4 W
·         Static pressure : 2.98~30.49 mmH2O
·         Life expectance: 50,000 hours @40C
·         Weight : 173 g
·         Fan connector: 4-pin
·         Operating Temperature & Humidity: -10C ~ 70 C ; 5%~90%RH
·         Storage Temperature & Humidity:  -20C ~ 75 C ; 5%~90% RH
·         Lead wire: UL1007 #26AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
·         Safety Approval: CE, UL, TUV
