Product Display

Model # R129238BUAF

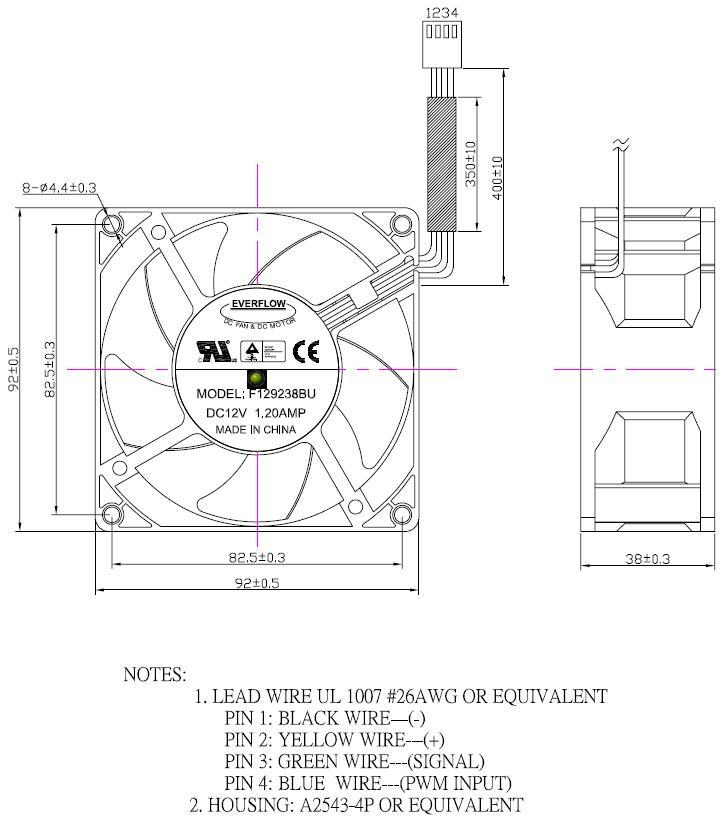

·         Fan size: 92x92x38mm
·         Fan voltage: 12V
·         Bearing: Dual Ball bearing
·         Fan speed: 700~ 4800 rpm
·         Noise Level: 20~54 dBA
·         Air Flow: 16.06~109.91 CFM
·         Power :  1.8~ 14.4 W
·         Static pressure : 0.22~10.62 mmH2O
·         Fan connector: 4-pin
·         Lead wire: UL1007 #26AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
