Product Display

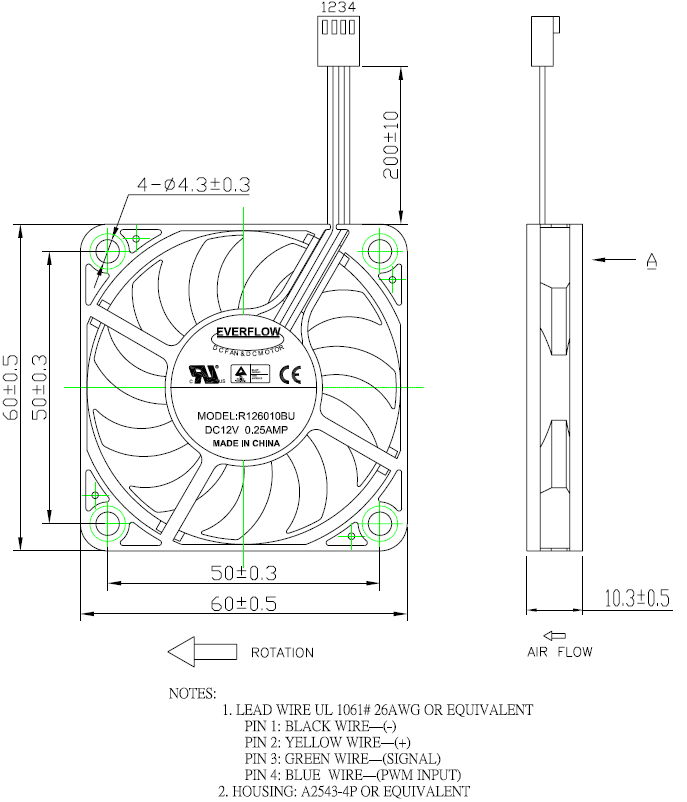

Model # R126010BUAF
·         Fan size:60x60x10mm
·         Fan voltage: 12V  (Operating range:11.4~12.6 V DC)
·         Bearing: Dual Ball bearing
·         Fan speed: 1400~5200 rpm
·         Noise Level: 21 ~44 dBA
·         Air Flow: 5.66~21.03 CFM
·         Power : 0.72 ~3 W
·         Static pressure : 0.27~2.75 mmH2O
·         Fan connector: 4-pin
·         Lead wire: UL1061 #26AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
·         Housing : Molex 2510 or equivalent (Everflow 2543)
