Product Display

Model # F126025BUAF

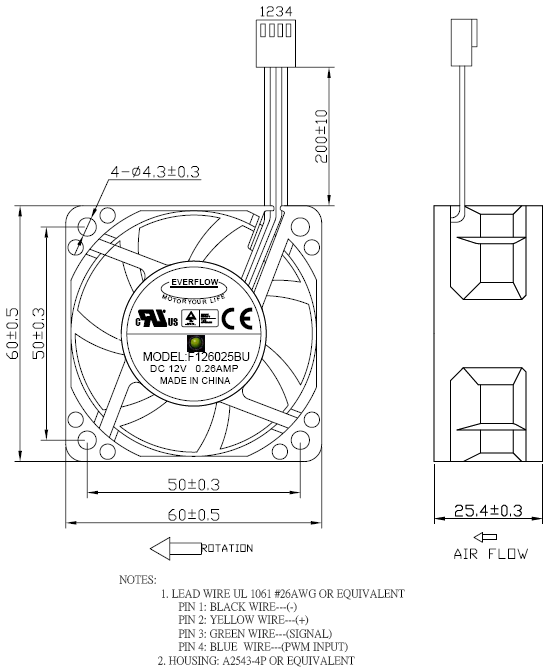

·         Fan size: 60x60x25mm
·         Fan voltage: 12V
·         Bearing: Dual Ball bearing
·         Fan speed: 2000 ~7200 rpm
·         Noise Level: 21.6 ~45 dBA
·         Air Flow: 9.99 ~36 CFM
·         Power :  1.44 ~3.12 W
·         Static pressure : 0.89 ~11.62 mmH2O
·         Fan connector: 4-pin
·         Lead wire: UL1061 #26AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
