Product Display

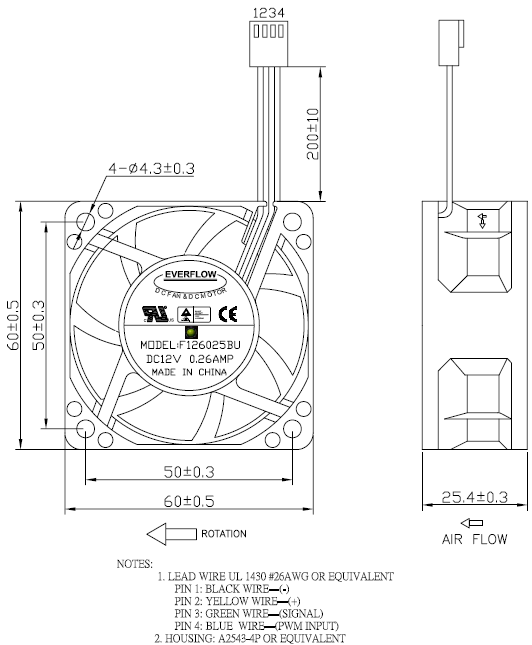

Model # F126025BUAF (6800 rpm)

·         Fan size: 60x60x25mm
·         Fan voltage: 12V
·         Bearing: Dual Ball bearing
·         Fan speed: 1300 ~6800 rpm
·         Noise Level: 18 ~41 dBA
·         Air Flow: 6.5 ~34 CFM
·         Power :  1.2 ~3.12 W
·         Static pressure : 0.38 ~10.36 mmH2O
·         Fan connector: 4-pin
·         Lead wire: UL1430 #26AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
