Product Display

Model # R126015BUAF

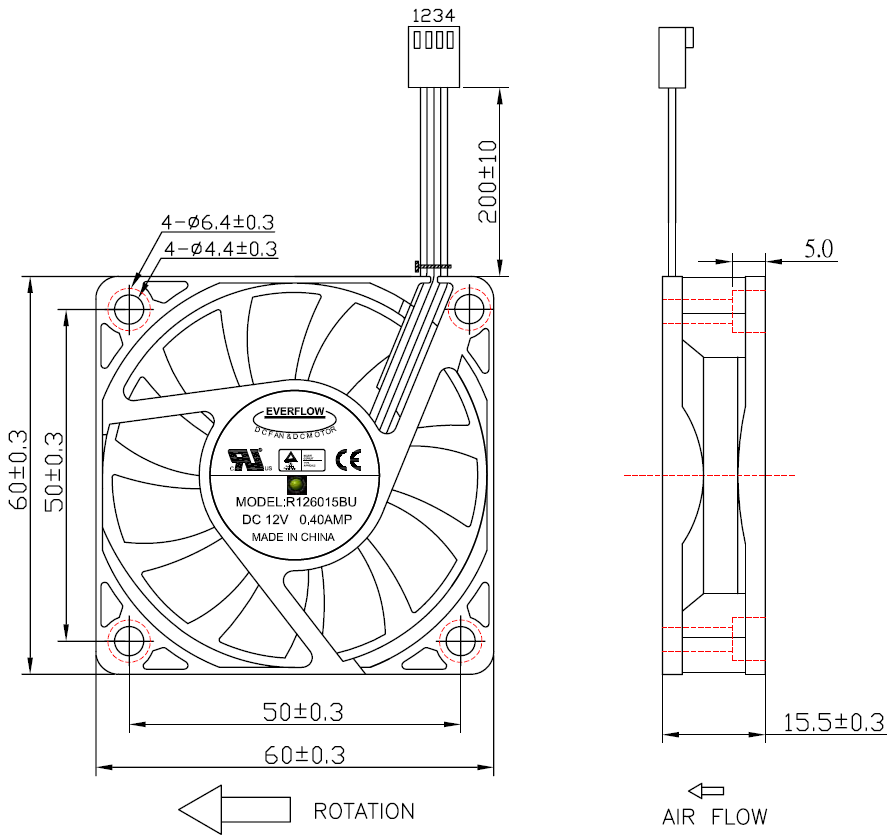

·         Fan size: 60x60x15mm
·         Fan voltage: 12V
·         Bearing: Dual Ball bearing
·         Fan speed: 2000 ~6000 rpm
·         Noise Level: 20 ~42 dBA
·         Air Flow: 9.94 ~29.81 CFM
·         Power : 1.2 ~4.80 W
·         Static pressure : 0.71 ~6.42 mmH2O
·         Fan connector: 4-pin
·         Lead wire: UL1061 #26AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
