Product Display

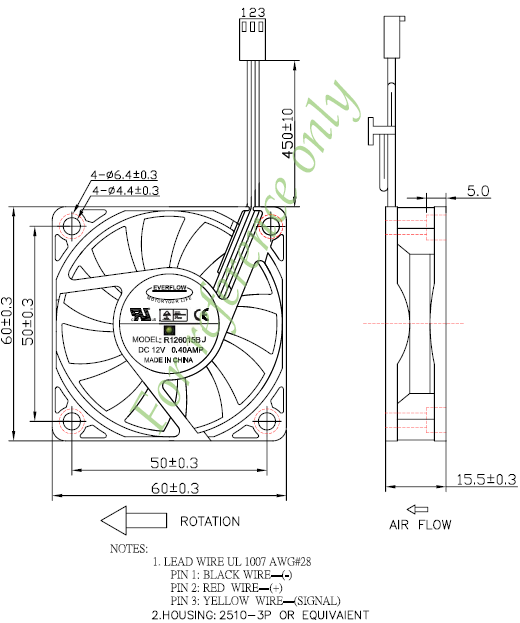

Model # R126015BUT
·         Fan size: 60x60x15mm
·         Fan voltage: 12V
·         Operating voltage: 7~13.2V
·         Current : 0.10 Amp @20C ~ max 0.4 Amp @55C
·         Bearing: Dual Ball bearing
·         Fan speed: 1300~ 6000 rpm
·         Noise Level: 21~46 dBA
·         Air Flow: 6.46 ~29.81 CFM
·         Power :  1.2 W @20C~ Max. 4.8W @55C
·         Static pressure : 0.3~6.42 mmH2O
·         Life Expectance: 50,000 hours @40C with 65% RH
·         Fan connector: 3-pin
·         Safety Approval: CE, UL, TUV
·         Weight : 40 g
·         Operating Temperature: -10C~70C
·         Storage Temperature: -20C ~75C
·         Operating Humidity: 5~90 % RH
·         Storage Humidity :  5~95 % RH
·         Lead wire: UL1061 #28AWG
·         Connector: Molex 2510 -3P or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Red (PWR), Pin 3 Yellow (SGN)
