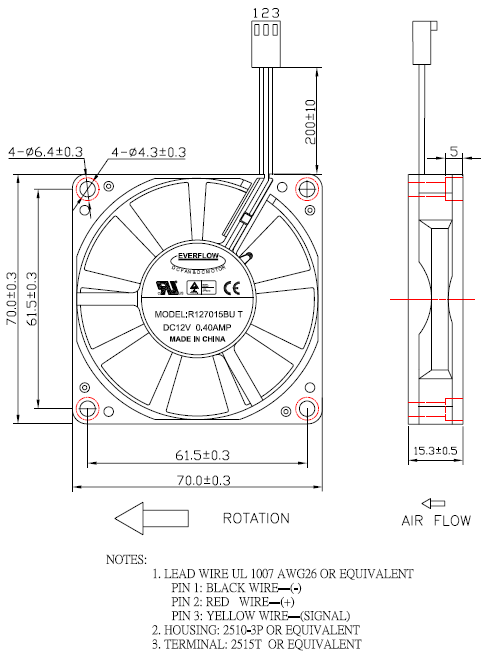

Model # R127015BUT

·         Fan size: 70x70x15mm
·         Fan voltage: 12V
·         Bearing: Dual Ball bearing  (ball bearing available: R127015DUT)
·         Fan speed: 1300 rpm @20C,  6000 rpm @55C
·         Noise Level: 21 dBA @20C, 46.5 dBA @55C
·         Air Flow: 10.18 CFM @20C, 46.98 CFM @55C
·         Power :  0.72 W @20C, 4.8 W @55C
·         Static pressure : 0.42 mmH2O @20C, 8.94 mmH2O @55C
·         Fan connector: 3-pin
·         Lead wire: UL1007 #26AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Red (PWR), Pin 3 Yellow (SGN)
