Product Display

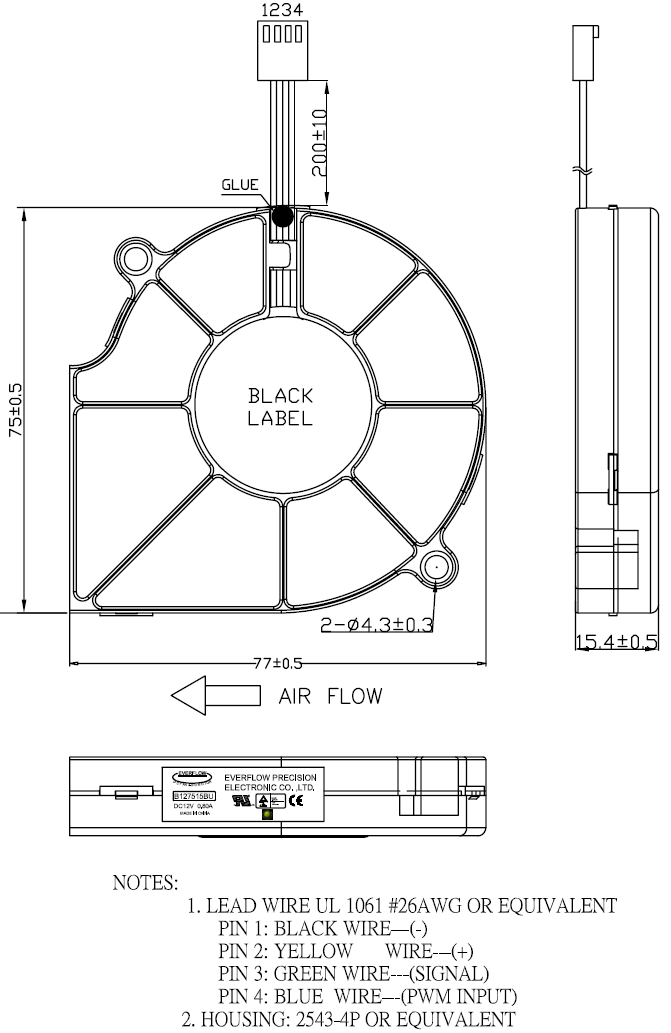

Model # B127515BUAF

·         Fan size: 75x75x15mm
·         Fan voltage: 12V
·         Bearing: Dual Ball bearing
·         Fan speed: 1000~ 5500 rpm
·         Noise Level: 18~51 dBA
·         Air Flow: 1.93~11.83 CFM
·         Power :  1.2~ 9.6 W
·         Static pressure : 0.38~20.66 mmH2O
·         Fan connector: 4-pin
·         Lead wire: UL1061 #26AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
