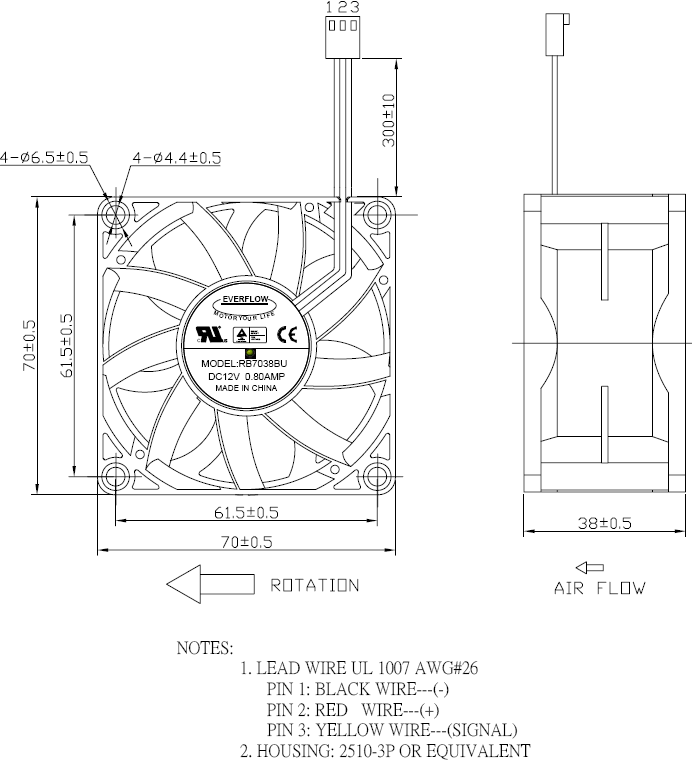

Model # R127038BU
· Fan size:70x70x38mm
· Fan voltage: 12V (Operating Range:7~13.2 V DC)
· Bearing: Dual Ball bearing
· Fan speed: 6800 rpm
· Noise Level: 51 dBA
· Air Flow: 63.63 CFM
· Power : 9.6 W
· Static pressure : 11.07 mmH2O
· Operating Temp.:-10C~70C
· Storage Temp: -20C~75C
· Life Expectancy: 50,000 hours @40C, 65% humidity condition
· Fan connector: 3-pin
· Lead wire: UL1007 #26AWG or equivalent
· Pin Assignment : Pin 1 Black (GND), Pin 2 Red (PWR), Pin 3 Yellow (SGN)
· Housing : Molex 2510-3p or equivalent
