Product Display

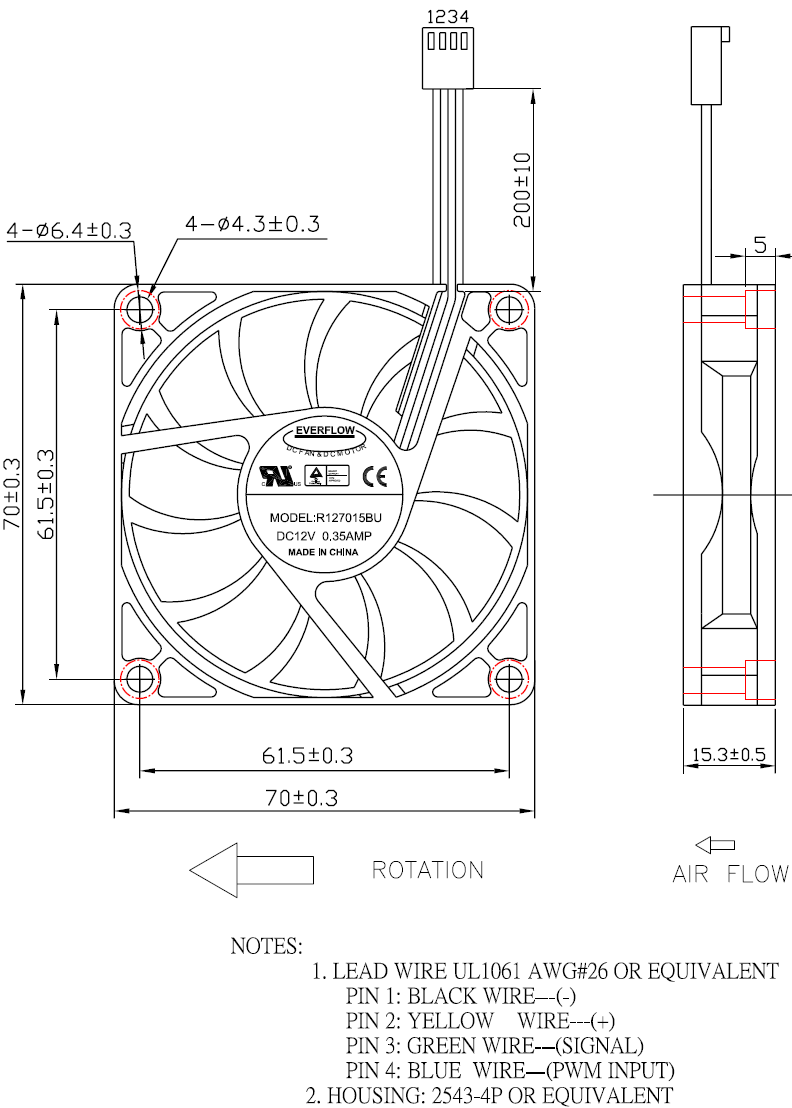

Model # R127015BUAF

·         Fan size: 70x70x15mm
·         Fan voltage: 12V
·         Bearing: Dual Ball bearing
·         Fan speed: 1500~ 4800 rpm
·         Noise Level: 19.2~38.9 dBA
·         Air Flow: 12.28~39.29 CFM
·         Power :  0.36~ 4.2 W
·         Static pressure : 0.38~3.92 mmH2O
·         Fan connector: 4-pin
·         Lead wire: UL1061 #26AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
