Product Display

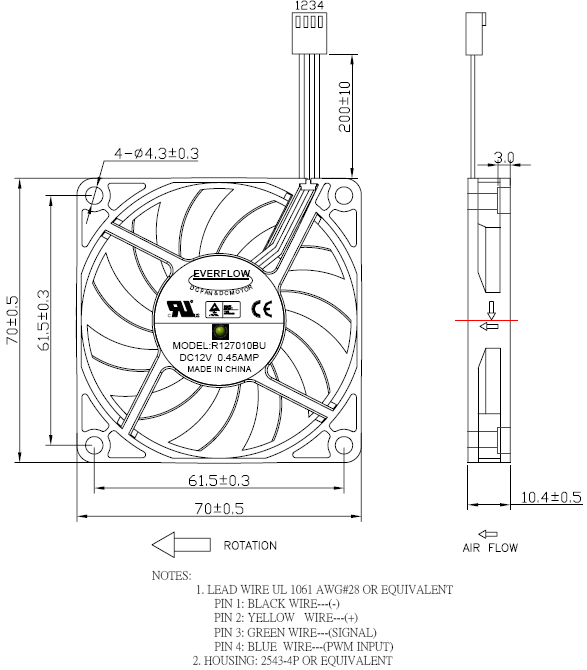

Model # R127010BUAF
·         Fan size: 70x70x10mm
·         Fan voltage: 12V
·         Operating voltage: 11.4~12.6V
·         Current : 0.10 Amp (duty cycle 0~30%) ~ max 0.45Amp (duty cycle 100%)
·         Bearing: Dual Ball bearing
·         Fan speed: 1200~ 5500 rpm
·         Noise Level: 19~45 dBA
·         Air Flow: 6.96 ~32.93 CFM
·         Power :  1.2 W (duty cycle 0~30%)~ Max. 5.4W (duty cycle 100%)
·         Static pressure : 0.2~4.5 mmH2O
·         Life Expectance: 50,000 hours @40C with 65% RH
·         Fan connector: 3-pin
·         Safety Approval: CE, UL, TUV
·         Weight : 35g
·         Operating Temperature: -10C~70C
·         Storage Temperature: -20C ~75C
·         Operating Humidity: 5~90 % RH
·         Storage Humidity :  5~95 % RH
·         Lead wire: UL1061 #28AWG
·         Connector: Molex 2543 -4P or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
