Product Display

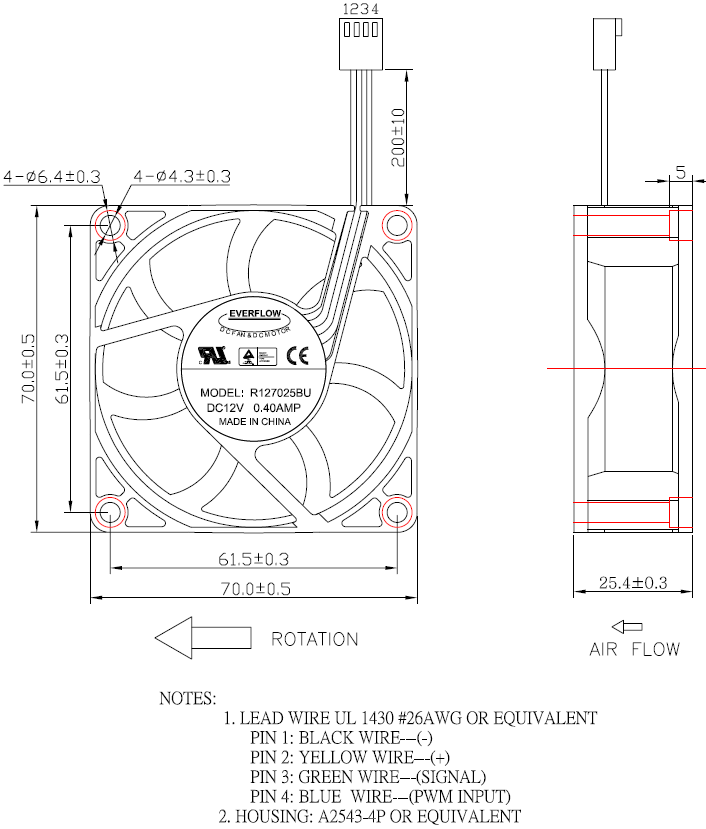

Model # R127025BUAF

·         Fan size: 70x70x25mm
·         Fan voltage: 12V
·         Bearing: Dual Ball bearing
·         Fan speed: 1000 ~5400 rpm
·         Noise Level: 19 ~43.8 dBA
·         Air Flow: 9.73 ~52.55 CFM
·         Power :  0.36 ~4.8 W
·         Static pressure : 0.27 ~8.02 mmH2O
·         Fan connector: 4-pin
·         Lead wire: UL1430 #26AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
