Product Display

Model # B128015BUAF

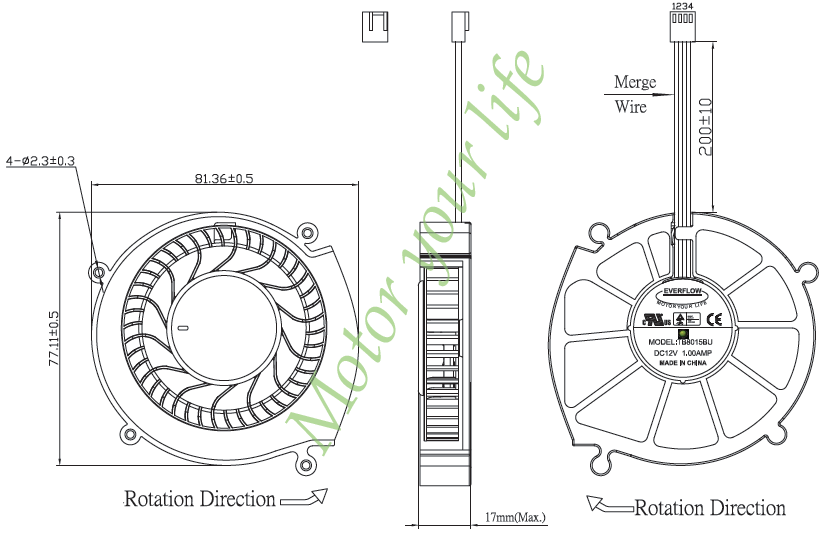

·         Fan size: 80x80x15mm
·         Fan voltage: 12V (Operation voltage: 11.4~12.6V)
·         Bearing: Dual Ball bearing

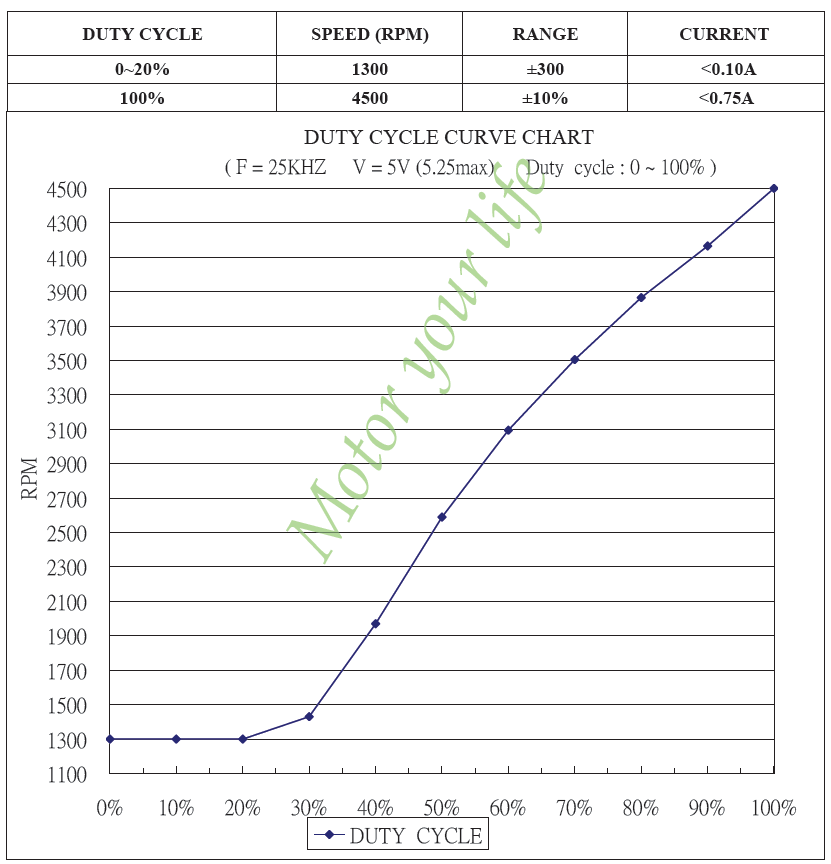

·         Fan speed: 1300~ 4500 rpm
·         Noise Level: 21~56 dBA
·         Air Flow: 3.22~11.12 CFM
·         Power :  max 9 W
·         Static pressure : 1.81~21.64 mmH2O
·         Fan connector: 4-pin
·         Life Expectancy:  50,000 hours @40C
·         Safety Approval: CE, UL, TUV
·         Operating Temp: -10C ~70C
·         Storage Temp: -20C ~ 75C
·         Operating Humidity: 5~90 %RH
·         Storage Humidity: 5~90 %RH
·         Weight : 55g
·         Lead wire: UL1061 #26AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
