Product Display

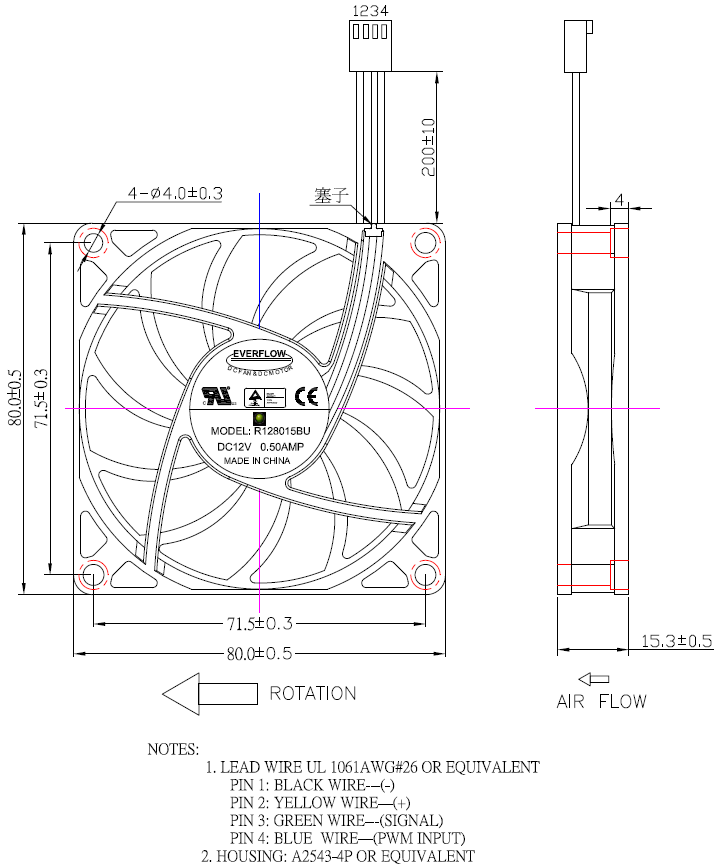

Model # R128015BUAF

·         Fan size: 80x80x15mm
·         Fan voltage: 12V
·         Bearing: Dual Ball bearing
·         Fan speed: 1200~ 4200 rpm
·         Noise Level: 19~39.9 dBA
·         Air Flow: 13.31~46.57 CFM
·         Power :  1.2~ 6 W
·         Static pressure : 0.33~3.99 mmH2O
·         Fan connector: 4-pin
·         Lead wire: UL1061 #26AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
