Product Display

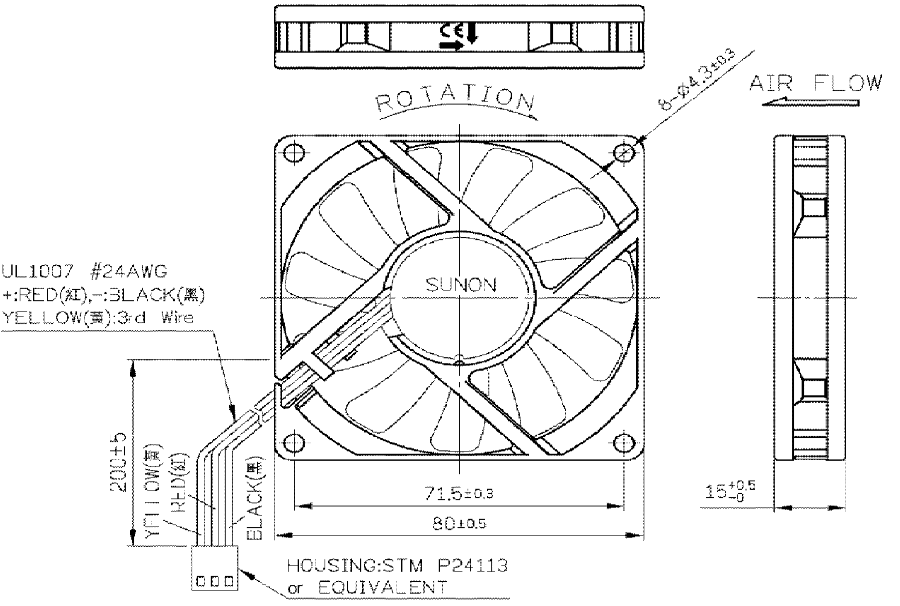

Model # ME8015151V3-D020-G99
·         Fan size: 80x80x15mm
·         Fan voltage: 12V (Operating Range: 4.5 ~13.8V)
·         Bearing: Vapo Bearing
·         Current : 90 mA  max 104 mA
·         Fan speed: 2400 rpm +/-10%
·         Noise Level: 28 dBA
·         Air Flow: 32 CFM
·         Power :  1.08 W   max 1.25 W
·         Static pressure : 0.09 inch-H2O
·         Operating Temperature : -10 ~70C
·         Storage Temperature : -40 ~70C
·         MBTF: 60,000 hrs @40C, 65% humidity, 90% CL
·         Weight: 68 g
·         Fan connector: 3-pin
·         Lead wire: 200 mm, UL1007, #24 AWG
·         Pin assignment: Pin 1 Black (GND), Pin 2 Red (PWR), Pin 3 Yellow (SGN)
