• Size: 80x80x15 mm
• Material: Aluminum
• Voltage: 12V
• Operating voltage: 7~13.2V
• Bearing: Dual Ball bearing
• Fan speed: 1500 ~ 6600 rpm +/- 10%
• Noise Level: 62.1 dBA (max 64 dBA)
• Air Flow: max. 21.35 CFM
• Power : 15.6 W (max. 18W)

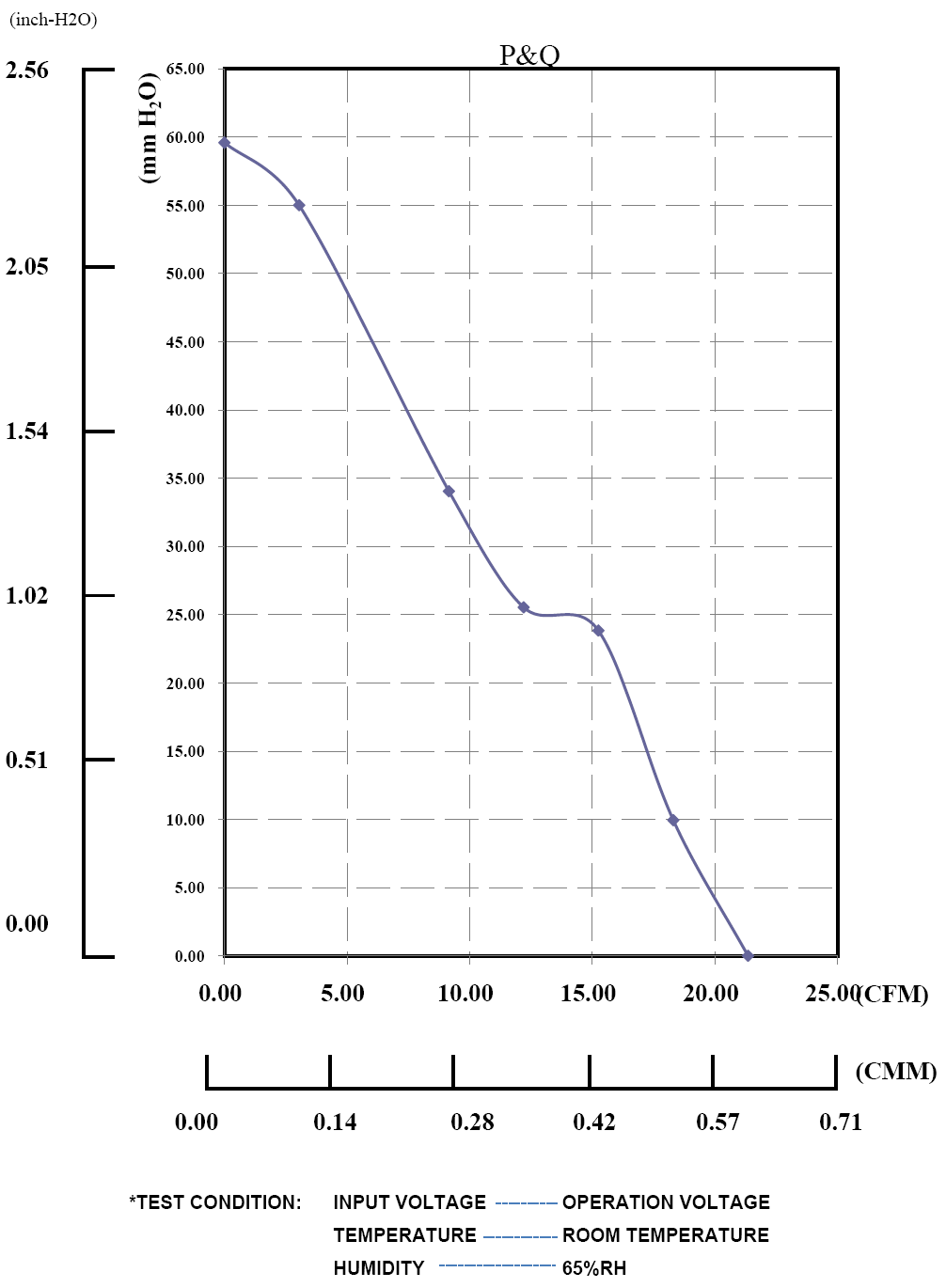

• Static pressure : 54.3 ~ 59.6 mmH2O
• Life Expectance: 70,000 hours @40C with 15%~65% RH
• Fan connector: 4-pin
• Weight: 80g
• Lead wire: UL1061 #26AWG
• Pin Assignment : Pin 1 Black (GND), Pin 2 Red (PWR), Pin 3 Yellow (SGN), Pin 4 Blue (PWM Input)
