Product Display

Model # R128025DMAF

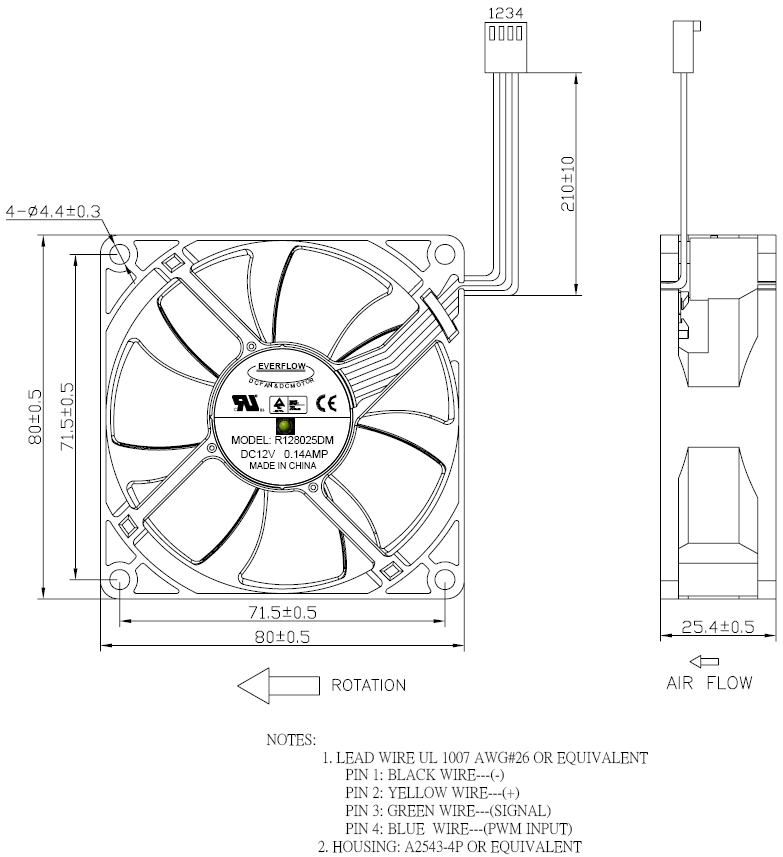

·         Fan size:80x80x25mm
·         Fan voltage: 12V  (Operating range:11.4~12.6 V DC)
·         Bearing: Ball bearing
·         Fan speed: 700~2400 rpm
·         Noise Level: 21 ~29 dBA
·         Air Flow: 10.72~36.76 CFM
·         Power : 0.96 ~1.8 W
·         Static pressure : 0.27~3.18mmH2O
·         Fan connector: 4-pin
·         Lead wire: UL1007 #26AWG or equivalent
·         Pin Assignment : Pin 1 Black (GND), Pin 2 Yellow (PWR), Pin 3 Green (SGN), Pin 4 Blue (PWM)
·         Housing : Molex 2510 or equivalent (Everflow 2543)
